Room Alert | 12SR Monitor

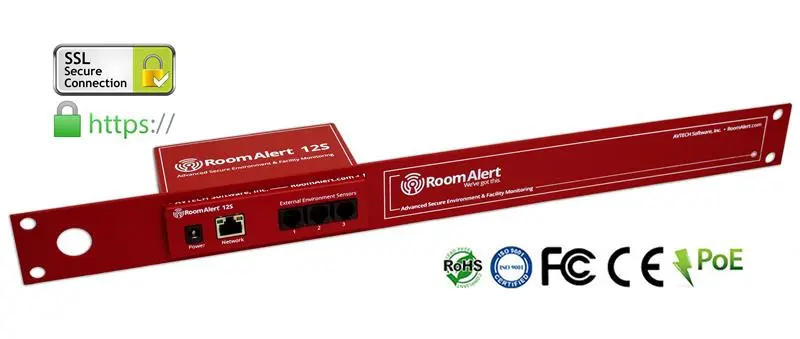

The Room Alert 12SR is AVTECH's rack mounted mid-range environment monitor in our Room Alert PRO line, offering the highest security features such as HTTPS, TLS and SNMP v3. Learn more about AVTECH's approach to security here.
This model monitors temperature plus up to 8 more environment conditions of your choice including an analog (0-5VDC) input. It also offers an additional dedicated relay port to toggle low-voltage electrical devices.
When conditions exceed your thresholds, Room Alert notifies you right away so you can act quickly.
- Send email and text messages right from the device.
- Trigger the warning LEDs and siren sound on a Light Tower.
- Pair with RoomAlert.com (or other compatible platforms) for even more alerting capabilities.
Documents
Internal Reference:
RA12S-RPD-RAS
Specifications
| General Information | |
|---|---|
| Brand | Room Alert |
| Build Material | Metal |
| Device Color | Red |
| Dimensions | H 4.45 cm, D 9.53 cm, W 48.26 cm (rack mounted) |
| Weight | 1.6 lbs (26.24 oz) with rack mount |
| Technical Specifications | |
|---|---|

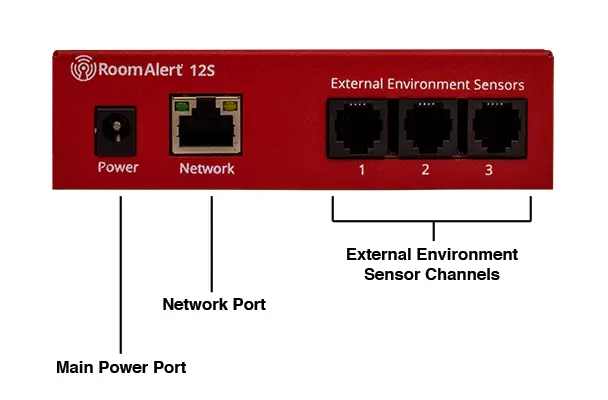

| Digital Sensor Ports | 3 digital sensor ports (RJ-11) |

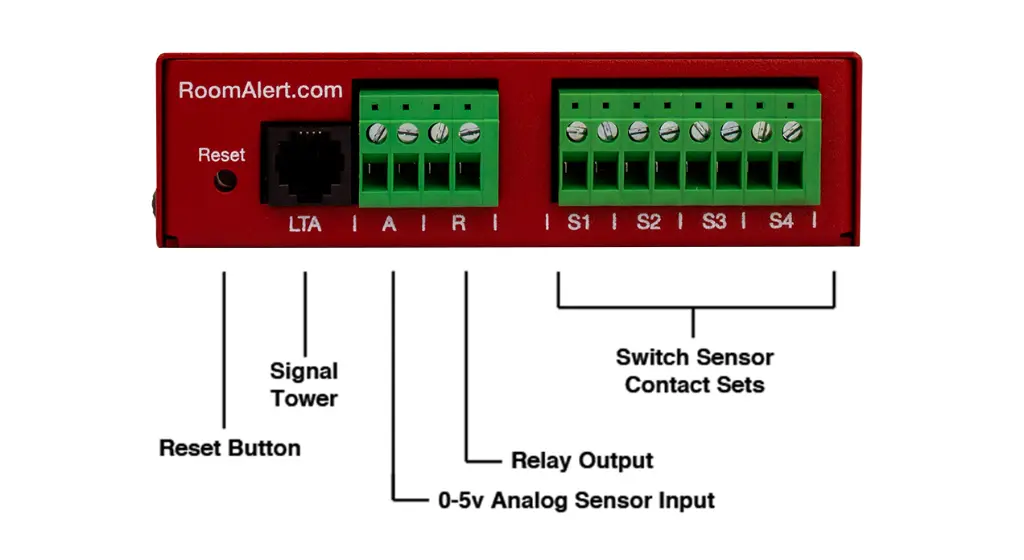

| Switch Sensor Ports | 4 switch sensor ports |
| Analog Sensor Port | 1 analog sensor port |
| Relay Output Ports | 1 relay output port |
| Light Tower & Relay Adapter port | 1 Light Tower & Relay Adapter port (RJ-11) |
| Connection Interface | 1 5V barrel-connector power jack 1 RJ-45 Ethernet port (PoE-enabled) |
