Room Alert | Digital Active Power Sensor & Temperature

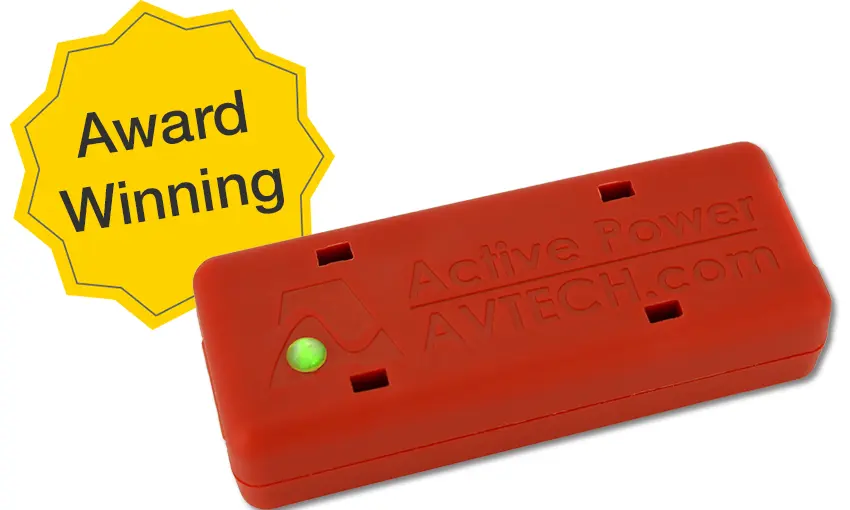

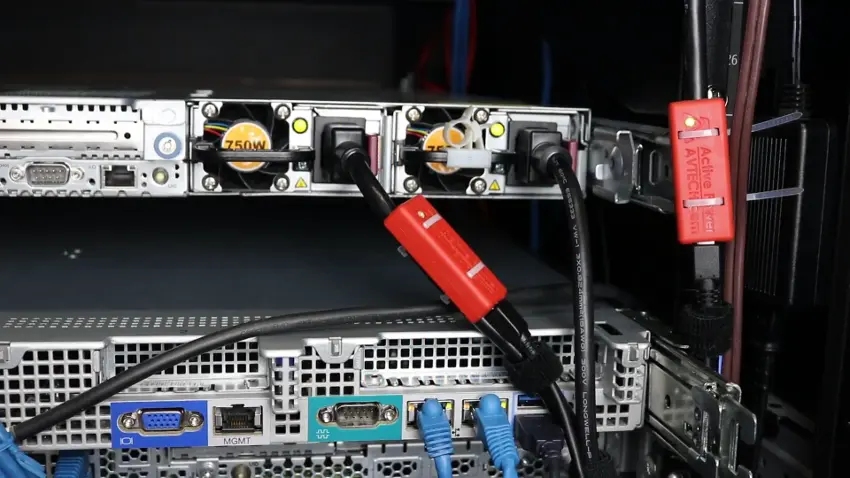

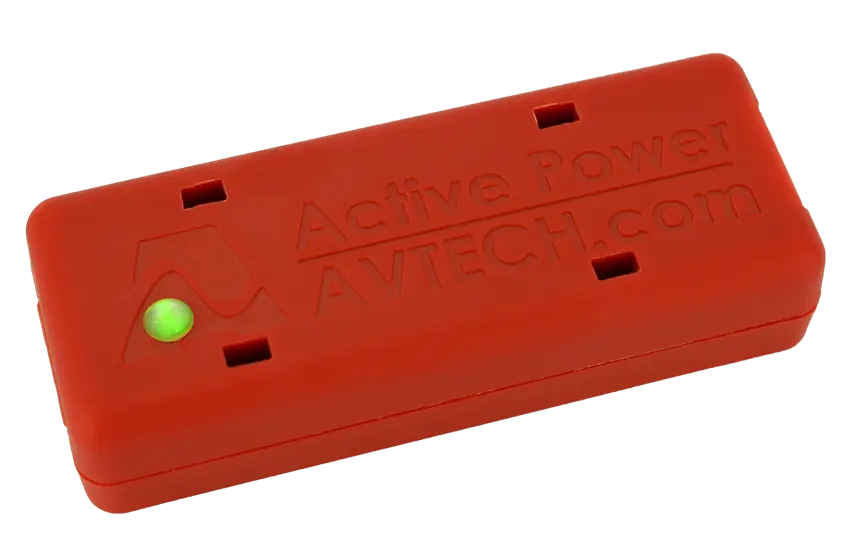

Monitor temperature and active power status with AVTECH's Digital Active Power w/Temperature Sensor. This patented, award winning sensor provides the real-time power status of any electric device by simply strapping it to any AC electrical cord. There is no need to unplug the device, modify the cord, or require an electrician to connect within a main panel, making it easier than ever to monitor any electric device. If the connected device draws more than 100 W, the Active Power Sensor will detect this and show the current power status as 'Active'. Additionally, this sensor provides real-time temperature values from -40 to 185° Fahrenheit or -40 to 85° Celsius. Accuracy is within +/- 2°C.
Documents
Internal Reference:
RMA-DAP-SEN
Specifications
| General Information | |
|---|---|
| Brand | Room Alert |
| Build Material | Plastic |
| Device Color | Red |
| Technical Specifications | |
|---|---|
| Sensor Type | Digital Sensor |
| Environment Condition Monitored | Temperature & Active Power |
| Real-Time Recognition | Yes, Temperature & Active Power |
| Digital Temperature Sensor Range | -40 to 185°F (-40 to 85°C) |
| Digital Temperature Sensor Accuracy | +/- 2°C |
| Digital Temperature Sensor Resolution | 0.03125°C |
| Active Power Range | Over 100 W 'Active' |
| Digital Analog Sensor Accuracy | +/- 2.5 W |
| Power Supply | Monitoring Unit |
| Digital Sensor Cable Type | Micro-USB to RJ-11 Cable |
| Digital Sensor Cable Length | 10' (3.05 m), 25' (7.62 m), 50' (15.24 m) or 100' (30.48 m) |
| Maximum Digital Sensor Cable Length | Approximately 100' (30.48 m) |
| Compatible Products | Room Alert 32S, 12S, 3S, 32E/W, 12E, 4E, 3E & 3W |
| Tags | |
|---|---|
| Tags |
Environment Monitoring
Digital Temperature Sensor
sensors
Active Power Sensor
|
