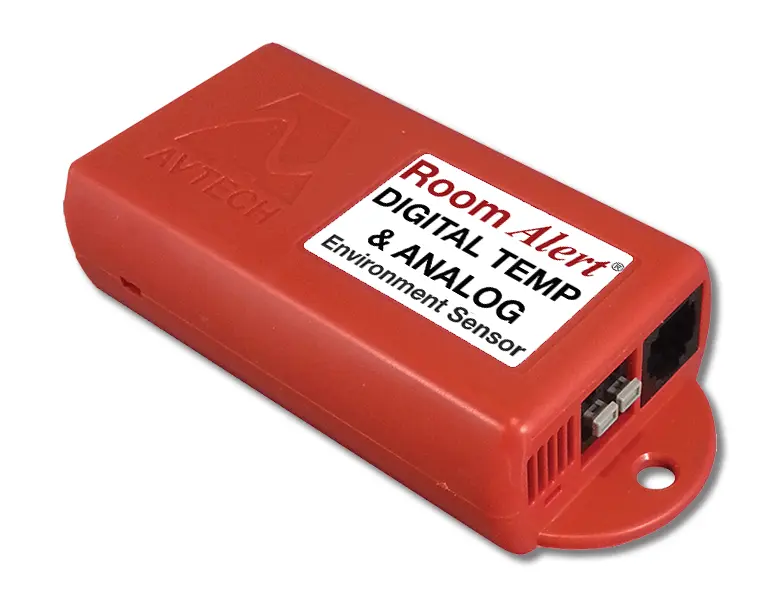

Room Alert | Digital Temperature & Analog Sensor
Monitor temperature and analog voltage with AVTECH's Digital Temperature & Analog Sensor. This sensor provides real-time temperature values from -40 to 185° Fahrenheit or -40 to 85° Celsius. Accuracy is within +/- 2°C. The analog range is from 0 to 5 VDC. Accuracy is within +/- 0.075 volts.
Internal Reference:
RMA-DTA-SEN
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| General Information | |
|---|---|
| Brand | Room Alert |
| Build Material | Plastic |
| Device Color | Red |
| Technical Specifications | |
|---|---|
| Sensor Type | Digital Sensor |
| Environment Condition Monitored | Temperature & Analog |
| Real-Time Recognition | Yes, Temperature & Analog |
| Digital Temperature Sensor Range | -40 to 185°F (-40 to 85°C) |
| Digital Temperature Sensor Accuracy | +/- 2°C |
| Digital Temperature Sensor Resolution | 0.03125°C |
| Digital Analog Sensor Range | 0 to 5 VDC |
| Digital Analog Sensor Accuracy | +/- 0.075 V |
| Digital Analog Sensor Resolution | +/- 0.01 V |
| Power Supply | Monitoring Unit |
| Digital Sensor Cable Type | RJ-11 Cable |
| Digital Sensor Cable Length | 25' (7.62 m) |
| Maximum Digital Sensor Cable Length | Approximately 100' (30.48 m) |
| Compatible Products | Room Alert 32S, 12S, 3S, 32E/W, 12E, 4E, 3E & 3W |
