Room Alert | Water Tank Level

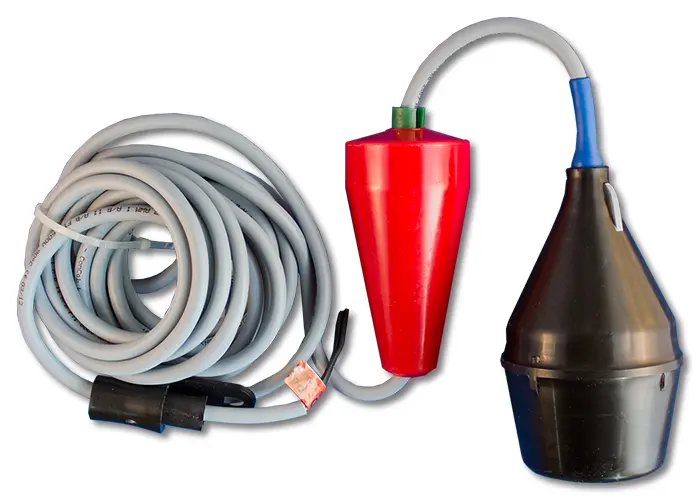

AVTECH’s Water Tank Level Sensor monitors the rise and fall of water in a container (i.e. typically a large tank). The float and control weight are composed of chemically-resistant polypropylene; the 16' (4.88 m) cable is coated with rugged PVC. Because this sensor uses a dual-point switch and differential height between switch states, you can use just one sensor to monitor two levels... both high and low.

Dimensions of the float switch are 5.1" H x 3.0" W (12.95 cm x 7.62 cm). The control weight is 4" H x 2.25" W (10.16 cm x 5.72 cm). The 16'(4.88 m) attached cable with PVC coating has a protection rating of IP67 and NEMA 6. The switch state differential range is a minimum of 10" (25.4 cm) and a maximum of 50" (1.27 m). Please see the Installation Note for more information.
