HID FARGO DTC5500LMX

High-volume printing and lamination solution that is affordable, eco-friendly, and durable.


Contact us

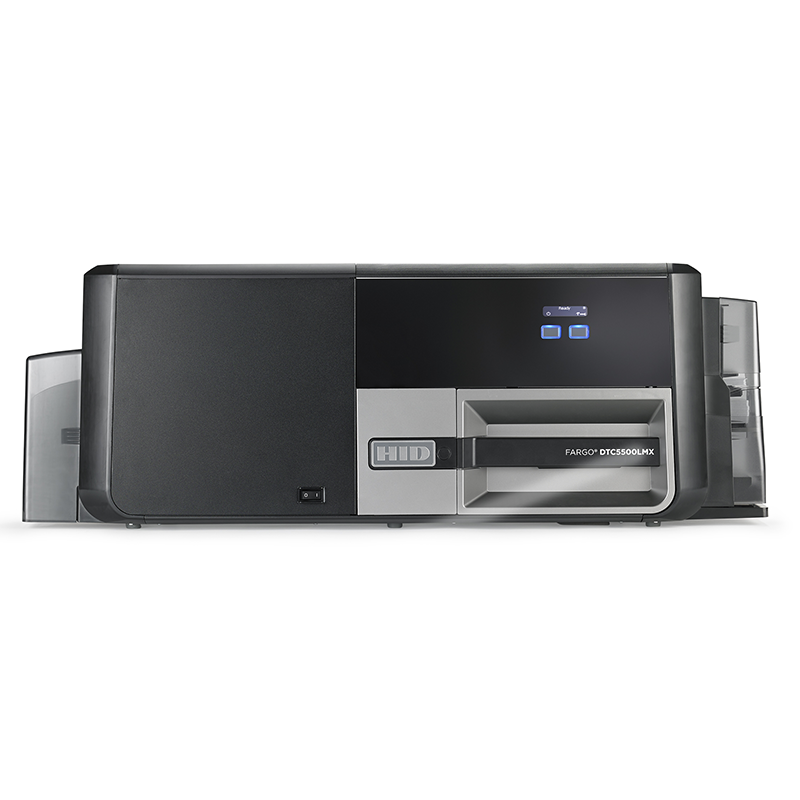

HID FARGO DTC5500LMX ID Card Printer

HID FARGO DTC5500LMX

For government agencies, universities, enterprise corporations and healthcare facilities that need direct-to-card printing capability to routinely issue high volumes of IDs or personalized cards cost-effectively, the HID® FARGO® DTC5500LMX is an affordable, eco-friendly solution that provides high quality card production and features wasteless lamination for an ultralow cost-per-card.
Designed to meet the high volume needs of budget-conscious organizations, the DTC5500LMX includes standard dual card hoppers and support for high-capacity, full-color ribbon and laminate consumables — keeping costs at a minimum while maximizing productivity.

Printer Specifications Tech-Specifications Warranty Consumables

Printer Specifications

Feature Description
Printing Technology Dye-sublimation / resin thermal transfer
Printing Resolution 300 dpi
Side printing Dual Sided (Standard)
Card Capacity Input Hopper: 200 Cards (Standard)
Output Hopper: 100 Cards
Reject Hopper: Up to 100 Cards with same-side input/output card hopper
Accepted Card Sizes CR80 / CR79
9-40 mil Card Thickness
Print Speed YMCKO*: 225 CPH
Monochrome: 600 CPH

Technical-Specifications

Feature Description
RAM 128 MP RAM
Control Panal soft-touch control panel and LCD screen
Drivers and software Free-of-charge from website,
Included software: FARGO® Workbench™ printer maintenance and diagnostic software
Main Interface
  • USB 2.0 full speed.
  • Ethernet with internal print server
  • WiFi (Field Upgrade)
Security Features
  • AES 256 data encryption
  • Lockable Hoppers / consumables door (Field Upgrade)
  • UV Printing
  • Password Protection
GreenCircle Certified Base Models Without Lamination

Warranty

Feature Description
Printer & Printhead Coverage 3 Years Warranty

Consumables

Part Number Description
045700 YMCKO*: Full-color with resin black and clear overlay panel / 500 images
045714 ECO YMCKO*: Half-panel color ribbon with resin black and clear overly panel / 850 images
045710 ECO YMCKOK*: Full-color ribbon with two resin black panels and clear overlay panel / 500 images
045701 ECO Premium Resin Black, K* / 3000 images
082700 PolyGuard LMX 1.0 mil Overlaminate, Clear / 1000 count

HID Global’s patent pending iON™ technology

allows the unit to reach optimal operating temperature in just 45 seconds, expediting production.

Dual-sided printing and dual-sided lamination — standard on every unit

wasteless lamination

can reduce high volume laminate materials cost by up to 40 percent.

Built-in security

Enjoy peace of mind with...

  • AES 256 data encryption
  • Password Protection
  • UV Printing
  • Lockable Hoppers / consumables door

Durable yet stylish housing

robust, metal components protect inner workings and ensure continuous, reliable operation in even the most demanding printing environments.

Versatility to meet your card application needs today and in the future — multiple, field-upgradable encoder options for one-step, inline printing and encoding

Encoding Options

Encoder Upgrade Option
HID Prox (Field Upgrade)
iCLASS® Standard/SE/SR/Seos (Field Upgrade)
Magnetic Stripe (Field Upgrade)
MIFARE Classic®/Plus® /DESFire®/DESFire® EV1, ISO 14443 A/B, ISO 15693) read/write encoder (Field Upgrade)
Contact Card (Field Upgrade)

Modules Options

Module Upgrade Option
Wi-Fi (Field Upgrade)
Dual lamination material (Field Upgrade)
