Datalogic's Stationary Scanner...
Datalogic's stationary industrial scanning solutions are designed for applications that are not permanently monitored
by operators. They are used in a wide variety of industries and offer various options for how output data can be used
and interfaced with business PCs, servers, or ERP systems.
Datalogic's versatile portfolio of stationary industrial
scanners can be used for a full range of barcode reading needs, including printed 1D and 2D barcodes, Direct Part
Marking (DPM), and Digimarc™ packaging. Whether your application requires image-based, single-plane, omni-directional,
or line scan barcode reading capabilities, Datalogic has a solution for you.
Industrial Fixed Barcode Scanners

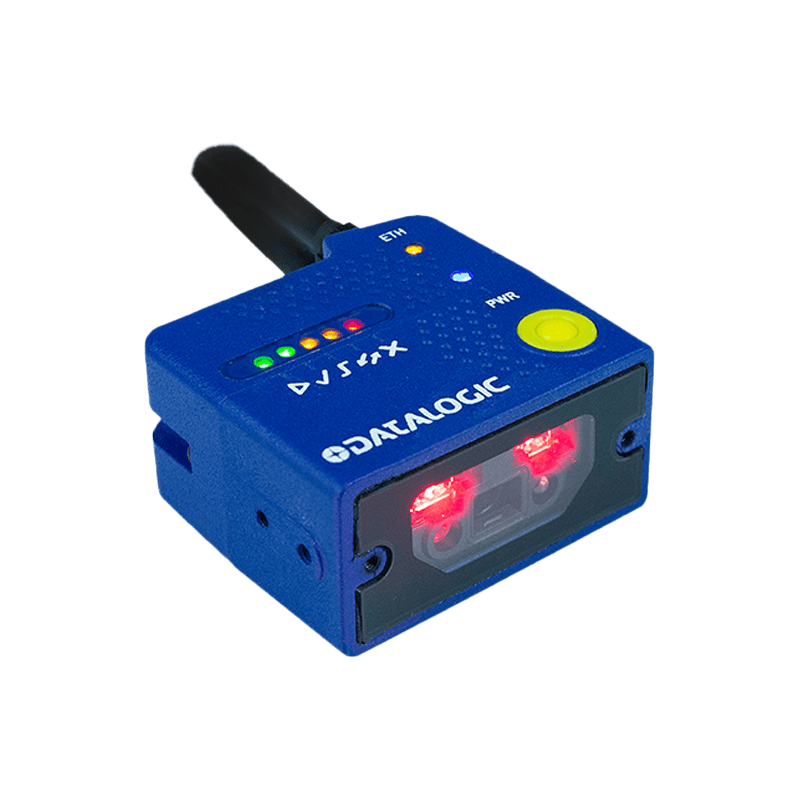

Matrix 120 1.2MP
Matrix 120 1.2MP
| Feature | Description |
|---|---|
| Sensor |
CMOS sensor with Global Shutter 1.2MP - 1280x960px |
| Aiming Element | Laser indicator |
| Motion Tolerance | Up To 57-FPS |
| Barcodes | 2D & DPM |
| Case Material | Aluminum |
| IP Rating | IP 65 |
| Warranty | 2-Year Factory Warranty |
Matrix 220 1.2MP
Matrix 220 1.2MP
| Feature | Description |
|---|---|
| Sensor |
CMOS sensor with Global Shutter 1.2MP - 1280x960px |
| Aiming Element |
Dual LED Pointers 2 Red Aimer LEDs |
| Motion Tolerance | 45-FPS |
| Barcodes | 2D, DPM, and UV |
| Case Material | Aluminium case and plastic protective window cover |
| IP Rating | IP65, IP67 |
| Warranty | 2-Year Factory Warranty |

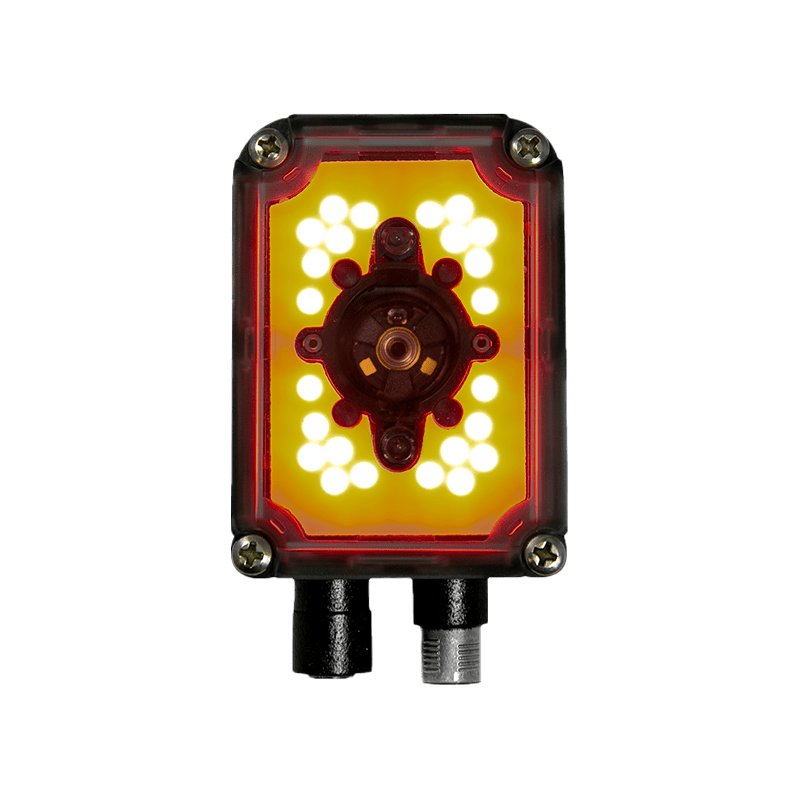

Matrix 300N 1.2MP
Matrix 300N 1.2MP
| Feature | Description |
|---|---|
| Sensor |
CMOS sensor with Global Shutter 1.2MP - 1280x1024px |
| Aiming Element |
Dual laser pointer (CDRH/IEC Class II) |
| Motion Tolerance | 60-FPS |
| Barcodes | 2D, DPM |
| Case Material | Aluminium case and plastic protective window cover |
| IP Rating | IP67 |
| Warranty | 2-Year Factory Warranty |
Matrix 300N 2MP
Matrix 300N 2MP
| Feature | Description |
|---|---|
| Sensor |
CMOS sensor with Global Shutter 2MP - 1600x1200px |
| Aiming Element |
Dual laser pointer (CDRH/IEC Class II) |
| Motion Tolerance | 45-FPS |
| Barcodes | 2D, DPM |
| Case Material | Aluminium case and plastic protective window cover |
| IP Rating | IP65 & IP67 |
| Warranty | 2-Year Factory Warranty |
Matrix 320 2MP 14-LED
Matrix 320 2MP 14-LED
| Feature | Description |
|---|---|
| Sensor |
1/3 CMOS sensor with Global Shutter 2MP - 1920x1080px 16:9 |
| Aiming Element | Laser cross red projection aiming |
| Motion Tolerance | 60-FPS |
| Barcodes | 2D, DPM |
| Case Material | Aluminium case and plastic protective window cover |
| IP Rating | IP65 & IP67 |
| Warranty | 2-Year Factory Warranty |
Matrix 320 2MP 36-LED
Matrix 320 2MP 36-LED
| Feature | Description |
|---|---|
| Sensor |
CMOS sensor with Global Shutter 2MP - 1920x1080px 16:9 |
| Aiming Element | Laser cross red projection aiming |
| Motion Tolerance | 60-FPS |
| Barcodes | 2D, DPM |
| Case Material | Aluminium case and plastic protective window cover |
| IP Rating | IP65 & IP67 |
| Warranty | 2-Year Factory Warranty |
Matrix 320 5MP 36-LED
Matrix 320 5MP 36-LED
| Feature | Description |
|---|---|
| Sensor |
1/1.8" CMOS sensor with Global Shutter 5MP - 2560x1936px |
| Aiming Element |
Cross aiming Laser Class II
Grid pattern aiming Laser Class I |
| Motion Tolerance | 25-FPS |
| Barcodes | 2D, DPM |
| Case Material | Aluminium case and plastic protective window cover |
| IP Rating | IP65 & IP67 |
| Warranty | 2-Year Factory Warranty |
Matrix 320 5MP 72-LED
Matrix 320 5MP 72-LED
| Feature | Description |
|---|---|
| Sensor |
1/1.8" CMOS sensor with Global Shutter 5MP - 2560x1936px |
| Aiming Element | Dual spot aiming Laser Class II |
| Motion Tolerance | 25-FPS |
| Barcodes | 2D, DPM |
| Case Material | Aluminium case and plastic protective window cover |
| IP Rating | IP65 & IP67 |
| Warranty | 2-Year Factory Warranty |
Matrix 410N 5xx_xx 2MP
Matrix 410N 5xx_xx 2MP
| Feature | Description |
|---|---|
| Sensor | CMOS Sensor SXGA 1280x1024px |
| Aiming Element | embedded laser aimer & patented Green Spot |
| Motion Tolerance | 60-FPS |
| Barcodes | 2D, DPM |
| Case Material | Aluminium |
| IP Rating | IP67 |
| Warranty | 2-Year Factory Warranty |
Matrix 410N 7xx_xx 2MP
Matrix 410N 7xx_xx 2MP
| Feature | Description |
|---|---|
| CMOS Sensor | CMOS Sensor UXGA 1600x1200px |
| Aiming Element | embedded laser aimer & patented Green Spot |
| Motion Tolerance | 45-FPS |
| Barcodes | 2D, DPM |
| Case Material | Aluminium |
| IP Rating | IP67 |
| Warranty | 2-Year Factory Warranty |
AV500 5MP
AV500 5MP
| Feature | Description |
|---|---|
| Sensor | CMOS 5MP |
| Aiming Element | ‘Green Spot’ technology |
| Motion Tolerance | 32-FPS |
| Barcodes | 2D Barcodes |
| Case Material | A380 Die Cast Aluminum |
| IP Rating | IP65 |
| Warranty | 2-Year Factory Warranty |
AV500 9MP
AV500 9MP
| Feature | Description |
|---|---|
| Sensor | CMOS 9MP |
| Aiming Element | ‘Green Spot’ technology |
| Motion Tolerance | 32-FPS |
| Barcodes | 2D Barcodes |
| Case Material | A380 Die Cast Aluminum |
| IP Rating | IP65 |
| Warranty | 2-Year Factory Warranty |
Retail Barcode Scanners
MAGELLAN™ 1500i 1MP
MAGELLAN™ 1500i 1MP
| Feature | Description |
|---|---|
| Sensor | 1MP - 1280x800px |
| Aiming Element | LED aimer for precision scanning |
| Ambient Light | 0 to 86,100 lux |
| Recognizable contrast | 25% Contrast |
| Case Material | Protective Plastic |
| Drop Resistance | 1.2M |
| IP Rating | IP52 |
| Warranty | 3-Year Factory Warranty |
MAGELLAN™ 3410VSI
MAGELLAN™ 3410VSI
| Feature | Description |
|---|---|
| Sensor | 1MP - 1280x800px |
| Read Rate | 30 Million pixels per/sec |
| Aiming Element | LED aimer for precision scanning |
| Ambient Light | 0 to 86,100 lux |
| Recognizable contrast | 25% Contrast |
| Case Material | Protective Plastic |
| IP Rating | IP52 |
| Warranty | 3-Year Factory Warranty |
MAGELLAN™ 3450VSI
MAGELLAN™ 3450VSI
| Feature | Description |
|---|---|
| Sensor | 1MP - 1280x1024px |
| Read Rate | 39 Million pixels per/sec |
| Aiming Element | Multiple diffused LEDs, orientation & wavelength |
| Ambient Light | 0 to 86,100 lux |
| Recognizable contrast | 25% Contrast |
| Case Material | Protective Plastic |
| IP Rating | IP52 |
| Warranty | 3-Year Factory Warranty |
