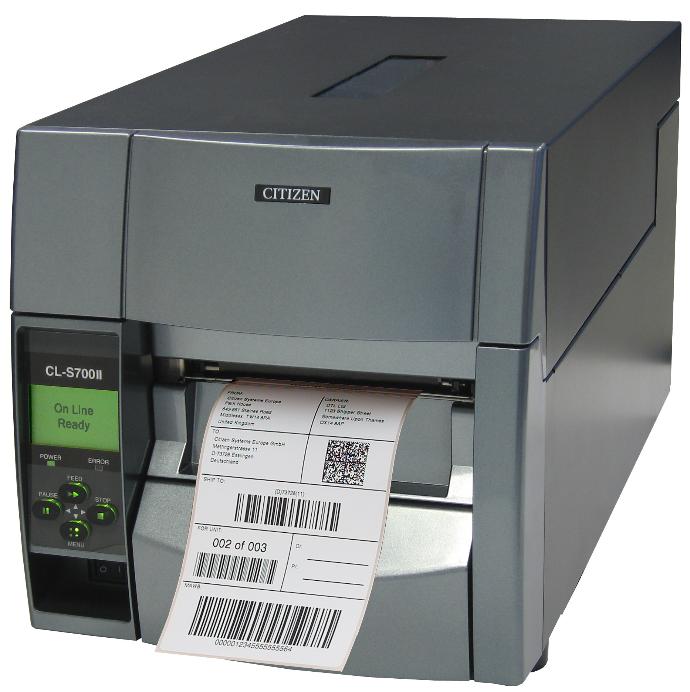

Citizen CL-S700 II Label Printer

Citizen CL-S700 II

Our CL-S700II series is designed for ease of use; the metal mechanism opens vertically to a full 90° to allow for easy ribbon access, while integrated ribbon control and positioning support precision printing on even small or specialist media. The CL-S700II also comes with the option to print in both direct thermal and thermal transfer modes.

  • Capacity for ribbons up to 450 meters.

  • Optional rewinder (CL-S700RII) and peeler.

  • Direct thermal and thermal transfer modes.

Download Datasheet

Printing Media Technical-Specifications Warranty / Safety

Printing

Printing Technology Thermal Transfer + Direct Thermal
Printing Resolution 203 dpi
Print Speed (maximum) 10 inches per second (254 mm/s)
Print Width (maximum) 4 inches (104 mm)

Media

Media Width (min to max) 0.5 - 4.6 inches (12.5 - 118 mm)
Media Thickness (min to max) 63.5 to 254 µm
Media Sensor Fully adjustable rear sensor and high resolution front sensor
Media Length (min to max) 0.25 to 99.99 inches (6.35 to 2539.74mm)
Roll Size (max), Core Size Outside diameter 8 inches (200 mm) Core size 1 inch (25mm) Plus Outside media slot
Ribbon winding & type Ink side in or out, automatically sensing. Wax, Wax/Resin or Resin Type
Ribbon size 3.4 inches (86.5 mm) maximum outside diameter. 450 metres length.
Ribbon system ARCP™ automatic ribbon tension adjustment


Technical-Specifications

RAM (standard Memory) 64MB total, 30MB available for user
Flash (Non-Volatile Memory) 16 MB total, 4MB available for user
Main Interface Triple interface USB, parallel and serial built-in, exchangeable interface card slot for optional card
Optional Interfaces
  • Wireless LAN 802.11b and 802.11g standards, 100 metres, 64/128 bit WEP, WPA, up to 54Mbps
  • Ethernet (10/100 BaseT)
Mechanism Hi-Lift™ metal mechanism with wide opening head
Control panel 4 buttons, 4-line back-lit graphic LCD
Drivers and software Free-of-charge on CD with printer, including support for various platforms
Emulations (Languages)
  • Datamax® DMX
  • Cross-Emulation™ - autoswitch between Zebra® and Datamax® emulations
  • CBI™ BASIC Interpreter
  • Zebra® ZPL2®
  • Eltron® EPL2®
Case Hi-Open™ metal case with safe, soft-close feature
Size (W x D x H) and Weight 255 x 490 x 265 mm, 13.3 Kg

Warranty / Safety

Warranty 2 years on printer. 6 months or 50 Kms printhead


Paper load

Front access for all operations including media and ribbon changing.

Media support

Very large media capacity - holds rolls up to 8 inches (200 mm).

Paper Width

Variable paper width - 1 inch (25.4 mm) – 4.6 inches (118.1 mm).

Paper thickness

Paper thickness up to 0.250mm.

Printing Speed

Ultra fast print out - up to 250mm per second (10 inches per second).

Display

Backlight LCD control panel for easy configuration.

Ribbon options

  • Wide range of ribbon options - Uses up to 360 metres inside and outside wound ribbons.
  • No more unreadable labels - the ARCP™ ribbon control technology assures clear prints.

Case

Hi-Open™ case for vertical opening, no increase in footprint and safe closing.

Energy

  • Power switch located in recess at front of printer
  • Internal power supply for reliability

Media sensor

  • Adjustable media sensor
  • Black mark sensor
  • Label gap sensor

Tear bar

Standard tear-bar for perforated tags.

Other

  • Front Loading Rewinder for easy rewinding of the backing paper when printing in "peel mode" or when printing batches of labels.
  • Low space requirement - integrated power supply enables clean work station


Accessories And Options


  • Basic peeler
  • High speed cutter
  • Internal peel & rewind: Yes
  • Heavy duty rotary cutter

Naturally Citizen Green Concept


  • ENERGY STAR® compliant
  • Recyclable packacking

Operating Systems


  • Windows 7 & 10
  • Windows Server 2012, 2016 & 2019
  • Linux and Mac OS/X
  • Zebra® ZPL2®
  • Cross-Emulation™ - Automatically switch between Zebra® ZPL® and Datamax®
  • BASIC Interpreter - for data stream processing
  • Linux CUPS
  • Datamax® DMX
  • EPL2 Emulation
  • IOS
  • Android
  • Windows 11
  • Windows Server 2022

Applications


  • Healthcare
  • Retail / Hiring
  • Manufacturing
  • Logistic / Transport
  • Warehousing
